Access Point Ubiquiti NanoBeam M5 (19dBi 5GHz MIMO airMAX Bridge)

Bookmark and Share

Status : Nicht auf Lager

Lieferzeit: 2-3 Tage

Code: N2533
112,34 €
Inkl. 19% MwSt., zzgl. Versandkosten

Kurzübersicht

Ubiquiti NanoBeam M5 is an 802.11n MIMO 2x2 access point operating in 5 GHz band. Thanks to unique solutions, the small-factor device provides exceptional performance. The built-in MIMO 2x2 antenna integrated with wireless module (InnerFeed) has 19 dBi gain. The casing made of UV resistant plastic is resistant to even the most severe weather conditions. The device features built-in surge protection.

Um zu vergrößern, fahren Sie über das Bild

  • http://www.dipolnet.de/media/catalog/product/cache/1/image/9df78eab33525d08d6e5fb8d27136e95/N/2/N2533.jpg
    Access Point Ubiquiti NanoBeam M5 (19dBi 5GHz MIMO airMAX Bridge)

Details

General view
General view
Rear view
Rear view
The Ethernet port
The Ethernet port
The included accessories
The included accessories
Ubiquiti NanoBeam M5 is an 802.11n MIMO 2x2 access point operating in 5 GHz band. Thanks to unique solutions, the small-factor device provides exceptional performance. The built-in MIMO 2x2 antenna integrated with wireless module (InnerFeed) has 19 dBi gain. The casing made of UV resistant plastic is resistant to even the most severe weather conditions. The device features built-in surge protection.
Key features
  • Compact size - both the antenna and radio module are placed in a small enclosure
  • Quick and easy to mount (mounting kit included)
  • Way of mounting with the freedom of three-axis alignment
  • Power supply via PoE (PSU included)
  • Antenna with 19 dBi gain
Ubiquiti NanoBeam M5 can operate in Router or Bridge mode. Its wireless interface supports Access Point, Access Point WDS, Client, and Client WDS modes. The device is compatible with MikroTik RouterOS platform.
AirMax™ TDMA protocol allows for elimination of "hidden nodes" problem by allocating for them time slots (TDMA) for collision-free communication. It enables maximum throughput even with dozens of client stations connected to the access point. Additionally, the included AirControl application can be used for central management of up to 100 devices.

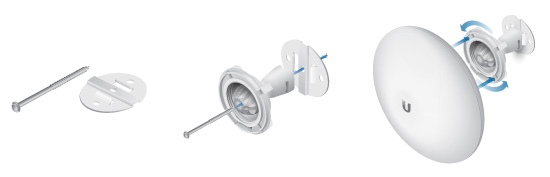

The use of the mounting kit
The use of the mounting kit
The way of mounting offers the freedom of three-axis alignment. No screws are required for pole mounting (only a hose clamp), and only a single wall screw (not included) is needed for wall mounting.
Directional radiation characteristics in vertical plain (AP operating with vertical polarization)
Directional radiation characteristics in vertical plain (AP operating with vertical polarization)
Directional radiation characteristics in vertical plain (AP operating with horizontal polarization)
Directional radiation characteristics in vertical plain (AP operating with horizontal polarization)
Directional radiation characteristics in horizontal plain (AP operating with vertical polarization)
Directional radiation characteristics in horizontal plain (AP operating with vertical polarization)
Directional radiation characteristics in horizontal plain (AP operating with horizontal polarization)
Directional radiation characteristics in horizontal plain (AP operating with horizontal polarization)
Specifications
Name Ubiquiti NanoBeam M5 19dBi 5 GHz MIMO
CodeN2533
Processor
Atheros MIPS 74KC, 560 MHz
Memory64MB DDR2, 8MB Flash
Antenna gain [dBi]19
Ethernet port
 1 x 10/100 Mbps
Operating band [MHz]5470 - 5825
Tx output power [dBm]26
Dimensions [mm]352x325x256
Max power consumption [W]6
Supply voltage [VDC]24
Operating temperature range [°C]-40...+70
Operating humidity (RH) [%]5...95
