Video Door Phone: Hikvision DS-KIS202 (1 subscriber; 4-wire)

Bookmark and Share

Status : sofort lieferbar

Lieferzeit: 2-3 Tage

Code: G7381
153,25 €
Inkl. 19% MwSt., zzgl. Versandkosten
ODER

Kurzübersicht

DS-KIS202 is a 1-subscriber Hikvision video intercom system dedicated for single-family homes. It consists of 7" DS-KH2220 indoor station/monitor with a resolution of 800 x 600 px and DS-KB2411-IM gate/gantry/door station equipped with a color pinhole camera with a resolution of 720 x 576 px. The indoor monitor is made in TFT LCD technology and supports up to 2 door stations The monitor can cooperate with CCTV analog camera operating in CVBS standard and be used for displaying the video from the camera and the door station(s) and for control of the electric strike. The external/outdoor door station is a panel made of aluminum alloy, equipped with a relay dedicated to control the electric strike, pinhole camera and IR illuminator with a range of 2 m, providing the correct visibility of the caller in the absence of lighting. Thanks to small dimensions, the panel can be aesthetically mounted even on a narrow metal post. The whole set can be extended with additional 2 monitors and additional door station. The video door phone uses 4-wire system.

Um zu vergrößern, fahren Sie über das Bild

  • http://www.dipolnet.de/media/catalog/product/cache/1/image/9df78eab33525d08d6e5fb8d27136e95/G/7/G7381.jpg
    Video Door Phone: Hikvision DS-KIS202 (1 subscriber; 4-wire)

Details

Front view of the DS-KH2220 indoor station/monitor
Front view of the DS-KH2220 indoor station/monitor
Rear vie of the monitor
Rear vie of the monitor
Array
Array
Views of the DS-KB2411-IM gate/gantry/door station
The included  accessories
The included accessories
Key features:
  • 720 x 576 px,
  • gate/gantry/door station with a color pinhole camera (720 x 576 px),
  • relay output for an electric door strike,
  • 7" color TFT LCD monitor ( 800 x 480 px),
  • one monitor can support 2 door stations and 1 CCTV camera (CVBS),
  • possibility of using up to 3 monitors supporting 2 door stations and 3 CVBS cameras,
  • 4-wire system,
  • power: 12 VDC.
DS-KIS202 is a 1-subscriber Hikvision video intercom system dedicated for single-family homes. It consists of 7" DS-KH2220 indoor station/monitor with a resolution of 800 x 600 px and DS-KB2411-IM gate/gantry/door station equipped with a color pinhole camera with a resolution of 720 x 576 px. The indoor monitor is made in TFT LCD technology and supports up to 2 door stations The monitor can cooperate with CCTV analog camera operating in CVBS standard and be used for displaying the video from the camera and the door station(s) and for control of the electric strike. The external/outdoor door station is a panel made of aluminum alloy, equipped with a relay dedicated to control the electric strike, pinhole camera and IR illuminator with a range of 2 m, providing the correct visibility of the caller in the absence of lighting. Thanks to small dimensions, the panel can be aesthetically mounted even on a narrow metal post. The whole set can be extended with additional 2 monitors and additional door station. The video door phone uses 4-wire system.
Connections
Array

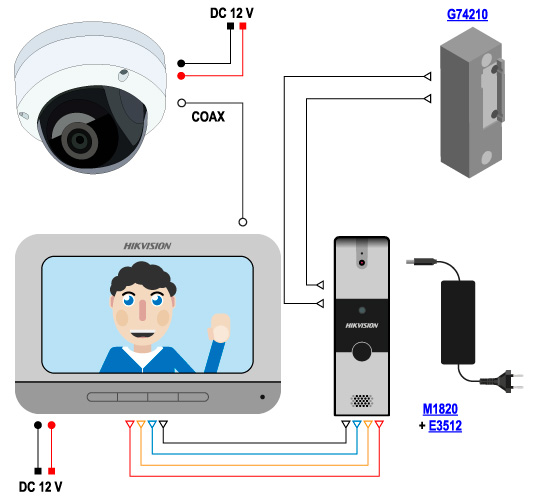

Diagram of a system with 1 door station and 1 monitor
Specifications:
NameDS-KIS202
CodeG7381
SystemAnalog
Number of monitors
1 (max. 3)
Number of door stations
1 (max. 2)
Number of CCTV cameras
1 per monitor
Wiring4-wire
Door station DS-KB2411-IM
Image sensor
1/4" CMOS
Resolution720 x 576 @ 25kl./s
Built-in microphone and speaker
Yes
IR illuminator
Yes, 2 m range
Built-in relay
Yes
Housing material
Aluminum alloy
Vandal-proof
-
IP rating
-
Power consumption
Max. 3 W
Operating temperature range
-30°C...60°C
Dimensions128 x 42 x 24 mm
Monitor DS-KH2220
Resolution800 x 480 (7", TFT LCD)
Built-in microphone and speakerYes
Supply voltage
12 VDC
Power consumption
< 5 W
Operating temperature range-10°C...55°C
Dimensions195 x 132 x 18 mm
Weight (kit)
1 kg
